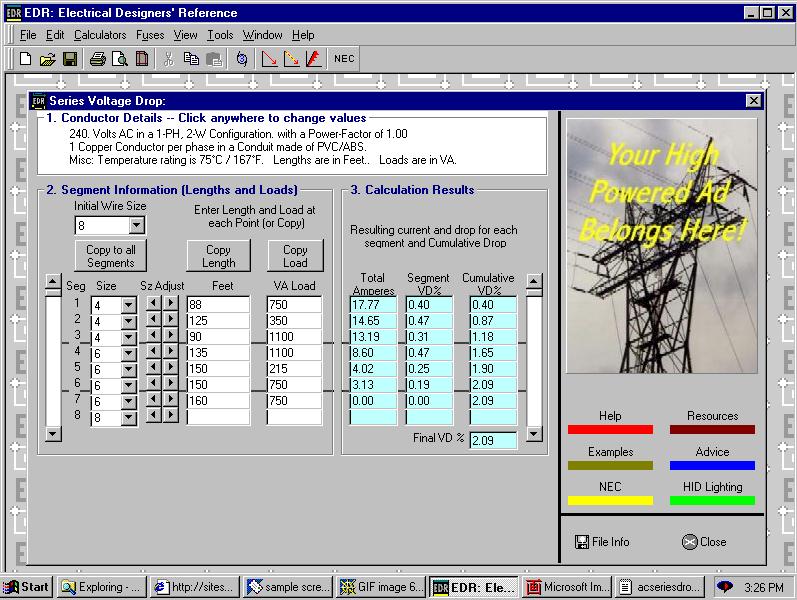

This calculator module is designed for calculating voltage drop along a series of up to 99 lighting fixtures or load points. Each conductor segment can be of different size and length, and the volt amperes load at each fixture point can be any value. If you've ever had to design a circuit to support road or walkway lighting, you can appreciate the value of this tool.

This series module includes all the calculation options and accuracy of the Voltage Drop calculator, including phase, power factor, and conduit material.

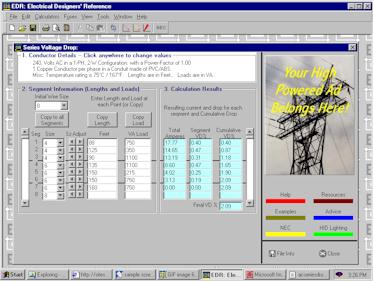

Click for larger image.
